| Opcode Format | Mnemonic | Description |
| 10011SSS | STORE | The STORE mnemonic is used to store a 8-bit long value from a General Purpose Register in the SRAM memory. The 16-bit long memory address is taken from the M Register. |
| Bits | Description |
| SSS | Source Register.
|

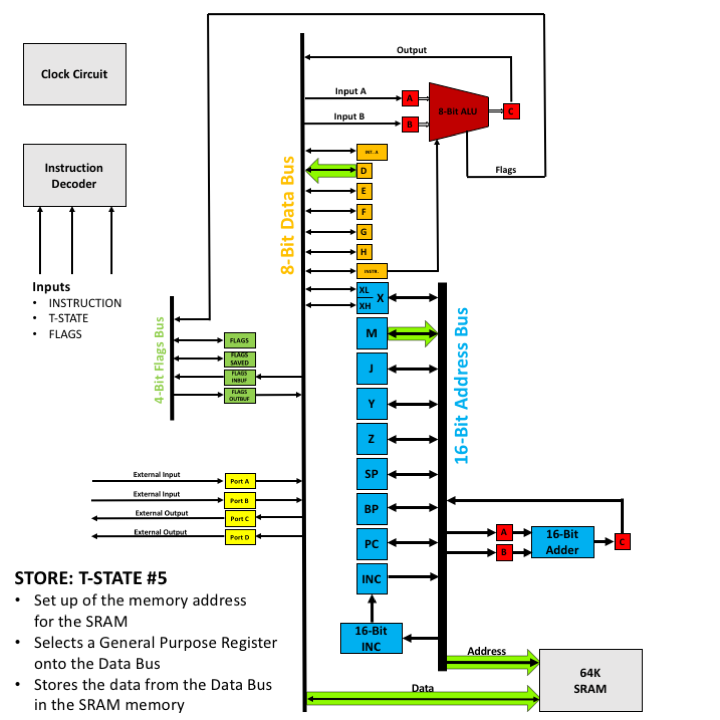

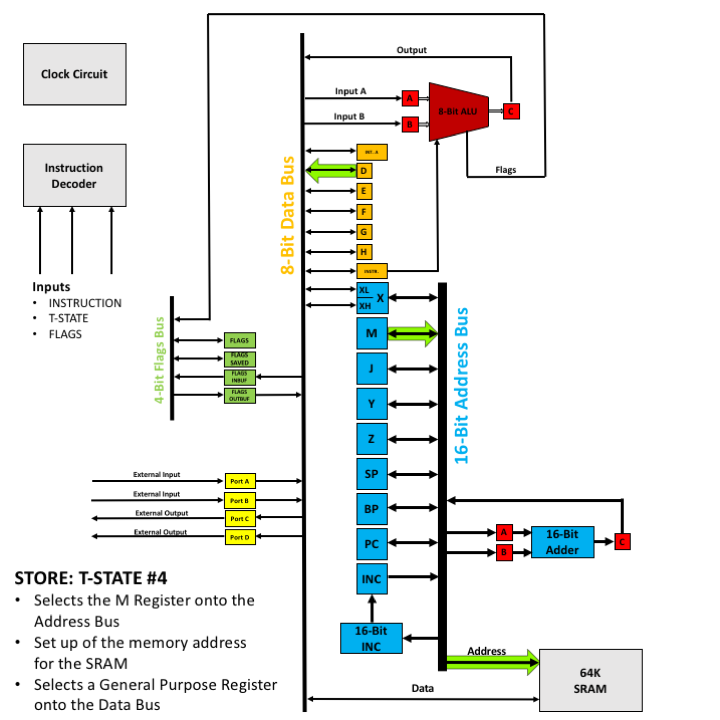

The following animation shows how the STORE opcode is executed physically on the CPU.
Downloads (licensed under CC BY-NC 3.0):
- STORE: Schematics – PDF (359 downloads)
- STORE: Stripboard (160x100mm) – PDF (301 downloads)
- STORE: Eagle 7.5.0 Schematics (291 downloads)
- STORE: Eagle 7.5.0 Stripboard (160x100mm) (314 downloads)
- STORE: Source Register Schematics – PDF (341 downloads)
- STORE: Source Register Stripboard (160x100mm) – PDF (325 downloads)
- STORE: Eagle 7.5.0 Source Register Schematics (303 downloads)
- STORE: Eagle 7.5.0 Source Register Stripboard (160x100mm) (292 downloads)
